HIGH PERFORMANCE 200-4R BUILDS

The TH200-4R case has a dual-bolt pattern that fits Chevy, as well as all Buick, Olds, & Pontiac V-8 blocks.  The external dimensions are similar to the Turbo 350 so it is often swapped in older vehicles to provide an overdrive gear and is well suited for high horsepower applications where an electronically shifted transmission is not in your budget.  200-4R offers a 4-speed ratio ratio of (2.74, 1.57, 1:1, 0.67 / 2.07R).  The 200-4R is the strongest hydraulically shifted transmission to come out of General Motors.   We offer builds from bone stock to high performance builds capable of 1000+HP.

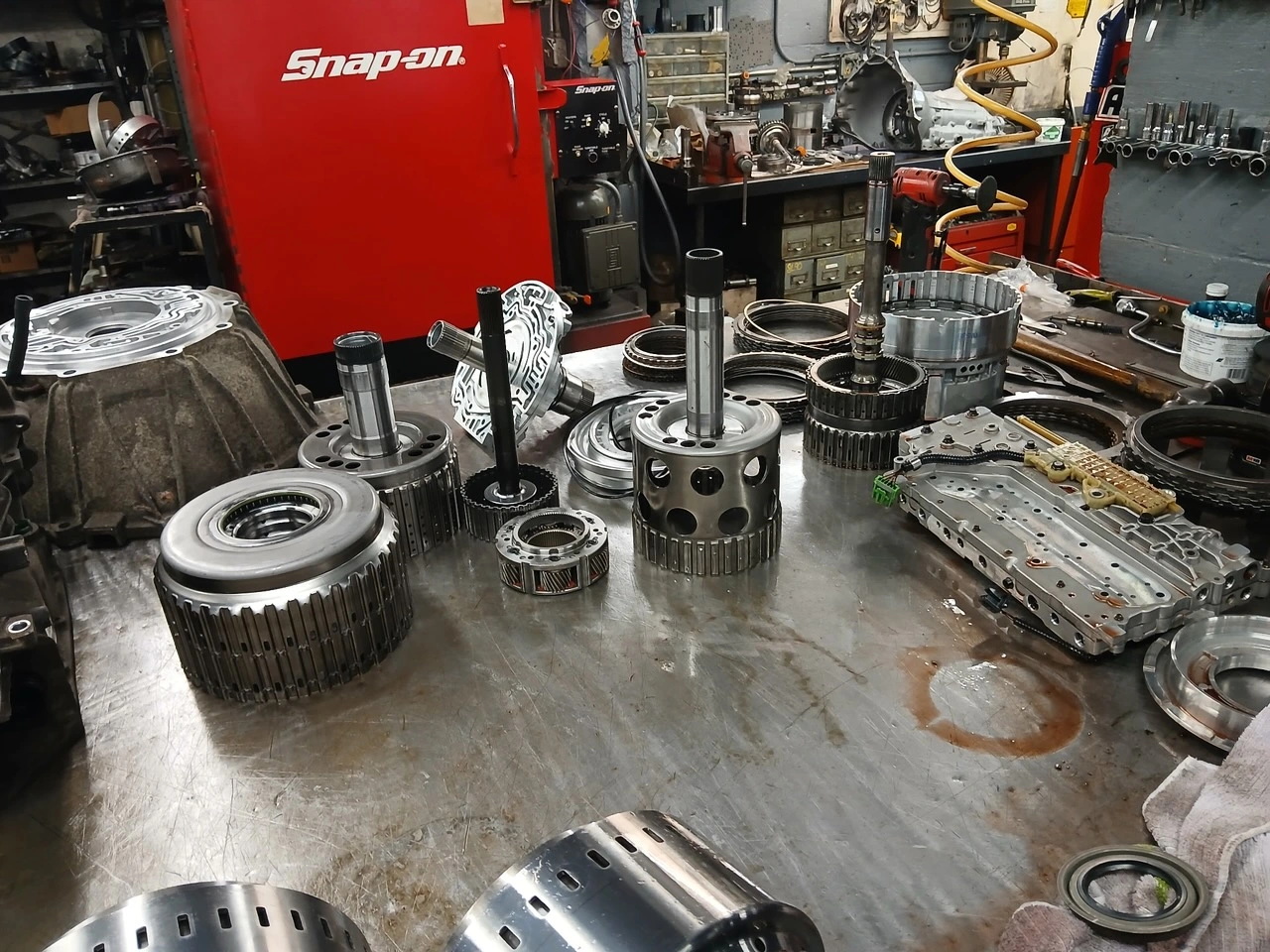

Your transmission of choice can be built to suite your application.  Below are your components used in this high quality 2004R transmission:


700R4 Filter Element

Special Coated Pump and  High Gear Drum Bushing

Hardened Heavy Duty Drive Shell

Valve Body and Governor Modifications

Extra Overdrive Clutch

Optional Billet Overdrive Carrier and Ring Gear

Billet Band Anchor

Optional Deep Pan


Hardened Pump Stator

7 Vane Pump Rotor

Chome-Moly Pump Rings

Billet Shafted Forward Drum

Billet Input Shaft

High Performance Boost Valves

Torque Converter Correction Valve

Alto High Performance Band

Billet Band Servo

High Performance Frictions
